Chapter One: What is Rigging?

Rigging (En), Rigge (Nor), Gréement (Fr), Takelwerk (Gr), Rigano (It), Ajustagem (Port), Aparejo (Sp)

rig·ging – noun – circa 1400 Scandinavia - 1. the system of ropes, cables, or chains employed to support a ship's masts and to control or set the yards and sails 2. assemble and adjust the equipment to make it ready for operation.

So you may be wondering how does this ancient Scandinavian term relate to the dynamic world of construction? Well, let's dive deeper into the connection between rigging and the construction industry.

While the tools and equipment used in modern rigging may have advanced from those used in Scandinavia circa 1400, the principles and techniques remain similar. In the realms of construction, industrial operations, and entertainment setups, the term "rigging" holds significant weight. It encompasses the art of setting up and arranging equipment to achieve specific objectives.

Hydraulic jacks, 20-ton forklifts, maneuverable 36-ton steer skates, and sturdy triple-axle tilt trailers stand as indispensable allies in the rigging process. Their capabilities facilitate hoisting, secure fastening, and meticulous balancing of substantial equipment.  By leveraging these tools and equipment, rigging professionals ensure that heavy machinery finds its rightful place, firmly anchored, and ready for operation.

The careful orchestration of rigging elements allows for the safe and efficient handling of massive loads.  So whether it's installing large machinery or setting complex production lines, the process of rigging is essential in ensuring the seamless execution of these tasks.

Chapter Two: Types of Rigging Equipment

Rigging equipment is a vital part of any heavy lifting or moving process.  Different types of rigging equipment are used for different tasks to ensure that the process is carried out safely and efficiently.

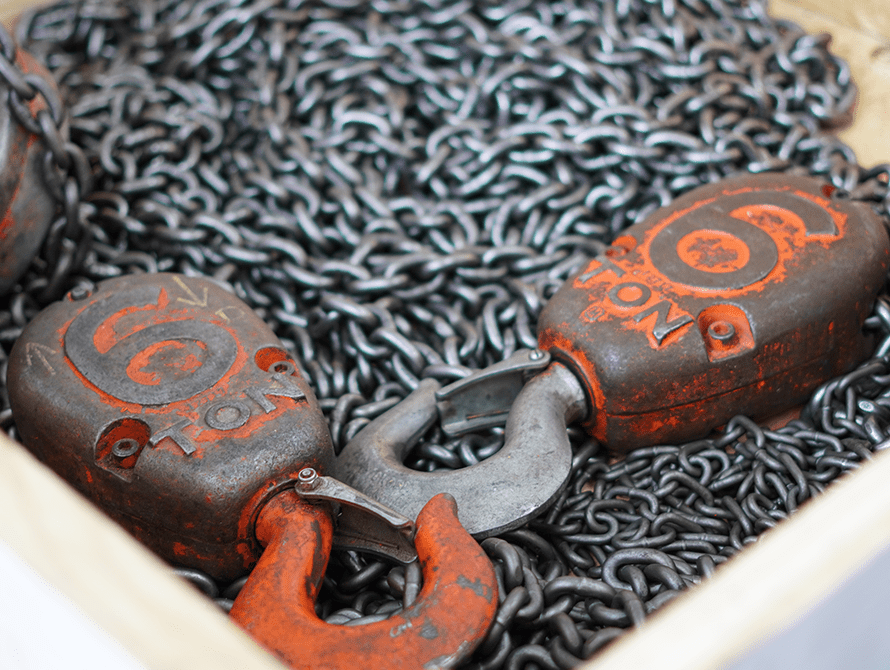

Rigging Equipment-min

Don’t have time to read this now?


Download a free copy of this comprehensive “What is Rigging” Guide

Chapter Three: Rigging Techniques

Rigging jobs involve the use of various techniques to safely lift and move heavy loads. Different techniques are used depending on the size and weight of the load, the location of the pick, and other factors.

In this section, we will explore different rigging techniques commonly used in the industry.  Each technique has its own advantages and is used in different situations to ensure a successful and safe rigging operation.

Crane rigging: Versatile and Precision Rigging for Heavy Load Lifting and Transportation

Crane rigging is a versatile and essential technique employed in various scenarios to lift and transport heavy loads with precision and efficiency. The crane, equipped with an array of specialized components, including cables, hooks, shackles, slings, and counterweights to balance large loads, plays a crucial role in securely fastening the load and facilitating its smooth movement to the desired location.  This technique proves particularly valuable when handling rooftop units or large machinery that necessitates overhead picking. Whether it's the installation of air handling units atop high-rise buildings or the relocation of massive industrial equipment, crane rigging ensures the seamless execution of these tasks, minimizing the risk of damage and optimizing operational productivity.

Maintaining Control and Safety: The Significance of Tailing in Heavy Load Operations

When it comes to lifting or lowering heavy loads, tailing plays a crucial role in maintaining control and preventing potentially hazardous situations. By utilizing a tagline, a secondary line attached to the load, riggers can effectively manage the load's movement and minimize the risk of swinging or spinning. This practice is especially essential in crane operations, where the tagline is typically secured to the unit being lifted to ensure consistent control throughout the process. With tailing, riggers can confidently navigate the challenges of load handling, ensuring the safety of both personnel and the surrounding environment.

Chain Hoisting: Effortlessly Lift and Maneuver Heavy Loads in Restricted Spaces

In situations where a crane is not a viable option due to space limitations, the technique of chain hoisting becomes a game-changer. This versatile method involves the use of a chain hoist, which is attached to the load and lifted using a robust chain or cable system. Whether it's a tight corner of a factory floor or a confined construction site, chain hoisting excels at navigating such constrained areas with ease. This makes it an invaluable solution for picking up and setting heavy machinery, facilitating machine moves, and ensuring seamless installations. With the flexibility and precision offered by chain hoisting, even the most challenging lifting tasks can be accomplished efficiently and securely.

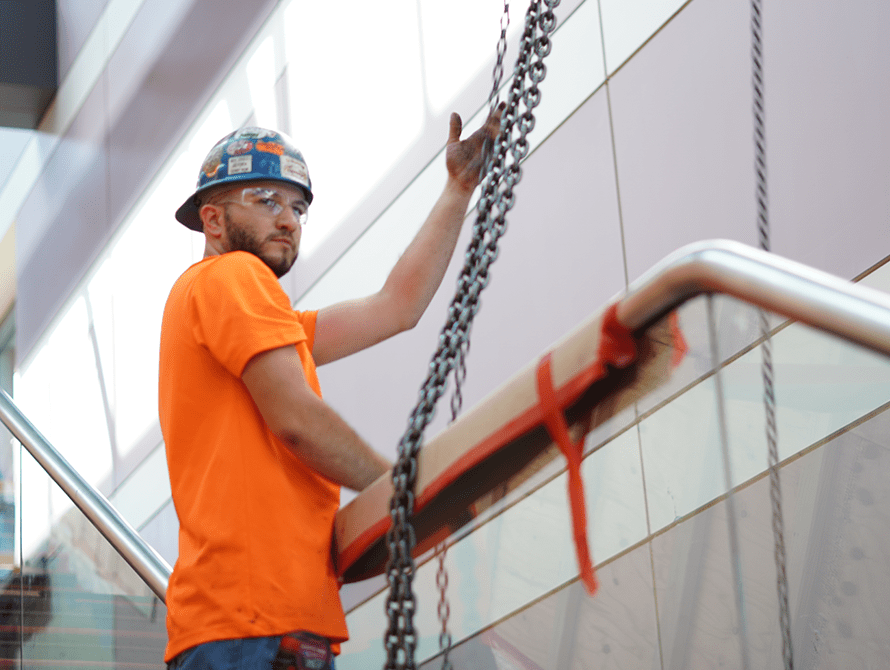

Crane rigging-min

Wire Rope Rigging: Securely Lift and Transport Heavy Loads with Ease

When it comes to handling substantial weights, wire rope rigging proves to be an indispensable technique. This method utilizes strong and durable wire ropes that are meticulously fastened to the load, allowing for safe and efficient lifting and movement. Whether it's the loading and unloading of equipment onto trucks or the relocation of hefty objects that surpass the capacity of traditional slings, wire rope rigging gets the job done with precision. By employing a crane or other specialized lifting equipment, the wire ropes enable controlled and reliable hoisting, ensuring the utmost safety and stability throughout the operation. From construction sites to industrial facilities, wire rope rigging stands as a reliable solution for tackling heavy-duty lifting challenges with confidence.

Versatile and Reliable: Harnessing the Power of Sling Rigging for Efficient Load Lifting

Slings are wrapped around the load and then lifted using a crane or other lifting equipment. Typically, nylon slings are used to choke, basket, or pick vertically for any equipment that’s needed to be picked in the air, or it can be used to pick equipment that is awkward and has no flat surfaces to be picked with a forklift.

Jacking and Rolling: Efficient and Secure Load Handling Solutions

This method involves utilizing hydraulic or mechanical jacks to lift heavy loads off the ground or lower them into position with precision. Once lifted, the load is placed on machine skates, allowing for smooth and controlled movement to the desired location.

Unlike forklifts or other large handling equipment, machine skates offer superior maneuverability in confined spaces. They are equipped with low-friction rollers or wheels that allow precise movement in any direction, making it easier to navigate around obstacles and tight corners.

Machine skates provide excellent control over the movement of heavy machinery. Operators can maintain a steady pace, adjust direction easily, and ensure gradual and controlled movement throughout the process. This minimizes the risk of accidents, ensuring the safety of both personnel and equipment.

Secure Connections: Shackling for Safe and Reliable Load Handling

Shackling involves the use of specially designed shackles that are attached to the load, providing a strong and durable link between the rigging equipment and the lifted object. Shackles are engineered to withstand the immense weight of the load, making them essential components in various lifting operations. Whether it's construction projects, industrial installations, or transportation of heavy machinery, shackles provide a crucial point of connection that enables safe and controlled lifting.

Shackles are predominantly used in conjunction with crane work due to their strength and reliability. However, they are also utilized in any overhead picking scenario involving slings. By attaching the shackles directly to the piece being lifted, operators can effectively distribute the load's weight and minimize the risk of slippage or detachment.

Shackles are designed to withstand harsh working conditions, including extreme temperatures, corrosive environments, and heavy-duty applications. Their robust construction and material composition make them resistant to wear, ensuring long-lasting performance even in demanding industrial settings.

Efficient Load Support: Unlocking the Power of Lifting Beams for Safe and Stable Lifting Operations

Lifting beams are ingeniously designed to bear the weight of the load and evenly distribute it along the beam's length. This not only helps in maintaining the structural integrity of the load but also prevents any excessive stress on specific points that could lead to potential damage or deformation. With their robust construction, lifting beams are capable of withstanding significant loads, making them an ideal choice for a wide range of applications.

The versatility of lifting beams is a significant advantage. They can be positioned both over and under the machinery or load being moved, allowing for flexibility in different lifting scenarios. When used overhead, the lifting beam acts as a secure anchor point, providing stability and support to the load during the lift. On the other hand, when positioned underneath the load, the lifting beam ensures that the weight is evenly distributed, minimizing the risk of load imbalances and enhancing lifting safety.

By leveraging efficient load handling techniques, you can ensure the safe transport and delivery of your valuable equipment. Whether it's lifting, securing, transporting, or packaging heavy loads, utilizing reliable methods is key to maintaining operational efficiency and minimizing potential risks.

man on forklift



Chapter Four: The Importance of Rigging Safety

Heavy equipment rigging involves the use of cranes, hoists, slings, and other equipment to lift and move large and heavy loads. While this work can be essential for construction, manufacturing, and other industries, it also poses significant risks and hazards.

Potential Risks and Hazards of Heavy Equipment Rigging

In industries where heavy equipment rigging is a common practice, involving the use of cranes, hoists, slings, and other specialized equipment, it is vital to prioritize safety due to the inherent risks and hazards associated with the work. While rigging plays a crucial role in construction, manufacturing, and other sectors, it can expose workers to significant dangers that require careful attention and precautionary measures.

Crush injuries are a significant hazard in rigging. Workers can be caught between loads and fixed structures or between moving loads and other equipment, leading to severe injuries or fatalities. Additionally, working around power lines or electrical equipment that weren’t properly disconnected pose a risk of electrocution, highlighting the importance of being mindful of electrical hazards in rigging operations.

Another risk in rigging operations is the potential for falls. Workers may find themselves at elevated heights while performing rigging tasks on platforms, scaffolds, or ladders, making them susceptible to severe injuries or even fatalities if they fall. The risk of struck-by accidents is another concern, as workers can be struck by loads that are being lifted, moved, or positioned, resulting in severe injuries or death.

Equipment failure is a significant concern as well. Cranes, hoists, slings, and other rigging equipment can fail due to factors such as overloading or poor maintenance, resulting in loads falling and causing harm to workers. Employing proper rigging techniques and ensuring regular equipment inspections are critical to prevent such incidents.

Improper rigging practices or the use of damaged or defective equipment can lead to loads shifting or falling during lifting or transport, causing injuries or damage. Therefore, it is essential to prioritize proper rigging techniques and ensure the integrity of equipment to minimize the risk of accidents.

Working outdoors exposes rigging personnel to environmental hazards. Extreme weather conditions can pose risks such as heat stroke, hypothermia, or slip-and-fall accidents, emphasizing the need for appropriate precautions and measures to protect workers in such environments.

The physically demanding nature of rigging work can result in fatigue and overexertion, leading to injuries such as strains or sprains. Proper training, scheduling, and adherence to safe work practices can help mitigate these risks.

To address these risks and hazards, it is crucial to prioritize safety. This includes providing workers with comprehensive training on rigging procedures and safety protocols and equipping workers with appropriate personal protective equipment (PPE), such as hard hats, safety glasses, and gloves, to safeguard against potential hazards.

Employers play a vital role in maintaining safety standards by conducting regular safety inspections, ensuring proper equipment maintenance, and promoting safe rigging practices. By identifying and addressing potential hazards, employers can create a safer working environment for rigging personnel.

47.4%

Of workers in transportation and material moving, construction and extraction occupations accounted for fatal occupational injuries according to OSHA.

14,800

OSHA citations were completed in 2022 resulting in $23.9M penalties according to The Center for Construction Research and Training

30

Hour intensive OSHA training course provides employees with the knowledge to recognize, avoid, and prevent common workplace hazards.  This isn’t always mandatory but highly encouraged.

Safe Rigging Practices

As we previously mentioned, rigging is an extremely dangerous field and ensuring the safety of employees, customers, and the general public on a jobsite should always be the top priority.  Safe rigging practices are essential for minimizing risks and hazards associated with heavy equipment rigging.

Here are some tips that can help ensure safe rigging practices:

  1. Properly train workers: Workers involved in rigging should be properly trained on safe rigging practices, including how to inspect equipment for damage, how to select the correct rigging equipment and techniques for the load being lifted, and how to work safely around the crane or other lifting equipment.
  2. Conduct regular equipment inspections: Regular inspections of rigging equipment, including slings, chains, and shackles, can help identify any damage or defects that could compromise the safety of the rigging operation.
  3. Follow load rating guidelines: The weight and dimensions of the load should be carefully considered, and the rigging equipment used should be rated to handle the load being lifted. Overloading equipment can lead to equipment failure or a load dropping.
  4. Use the proper rigging equipment: The proper rigging equipment should be used for the load being lifted, such as wire ropes, synthetic slings, or chain slings. The rigging equipment should also be inspected to ensure it is in good condition and properly rated for the load being lifted.
  5. Use tag lines: Tag lines, which are ropes attached to the load being lifted, can help control the movement of the load during lifting or positioning, reducing the risk of struck-by accidents.
  6. Communicate effectively: Effective communication is crucial during rigging operations. All workers involved in the operation should understand their roles and responsibilities and communicate effectively with each other to ensure the load is lifted and positioned safely.
  7. Properly position workers: Workers should be positioned away from the load and the crane's swing radius to reduce the risk of being struck by the load or the crane.
  8. Perform a site assessment: Before starting a rigging operation, perform a site assessment to identify any hazards such as power lines, uneven ground, or other obstacles that could affect the safety of the operation.
  9. Use proper PPE: Workers should wear appropriate personal protective equipment (PPE), including hard hats, safety glasses, gloves, and steel-toed boots, to protect against falling loads or other hazards.

By following these tips, employers and workers can help ensure safe rigging practices, reducing the risk of injuries or fatalities during heavy equipment rigging operations.
